LED lamp module for luminaire 325-R1 42 LED / 24 V

Linear LED module 325-R1 is designed for use in linear luminaires, lighting for display cases and as a light source for refrigerators. The LED module PCB has 42 2835 type LEDs from Samsung or Osram. In addition to regular white light with a color temperature of 3000 to 6500K, the module can be supplied with pink or super warm (2200K) LEDs. The LED module for the 325-R1 lamp can be used for window lighting and as an alternative to T8 lamps in lighting retail counters.

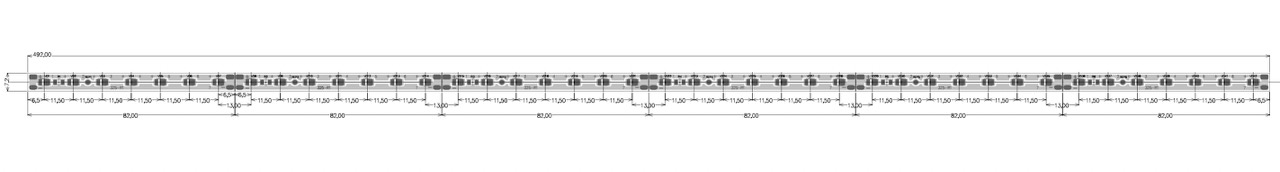

The 325-R1 LED module is 7.2 mm wide and 1 mm thick, which allows it to be easily installed in a thin aluminum profile. The board is attached to the surface of the radiator using 3M double-sided adhesive tape and does not have holes for fastening with screws or rivets. The board’s supply voltage is 24 V, depending on the resistor rating, you can adjust the LED supply current. The LED module is 492 mm long and is divided into 6 segments of 82 mm each, which adds convenience in the production of non-standard lamps.

Where to use the LED module 325-R1:

• in lighting jewelry windows;
• for lighting supermarket shelves;
• for backlighting in refrigerators.

Recommendations for choosing a power supply for the LED module:

• power supplies with an output voltage of 24 volts;
• drivers for LEDs with an output current not exceeding 700 mA;
• the power of the power supply is determined depending on the number of connected LED boards and their connection scheme.
